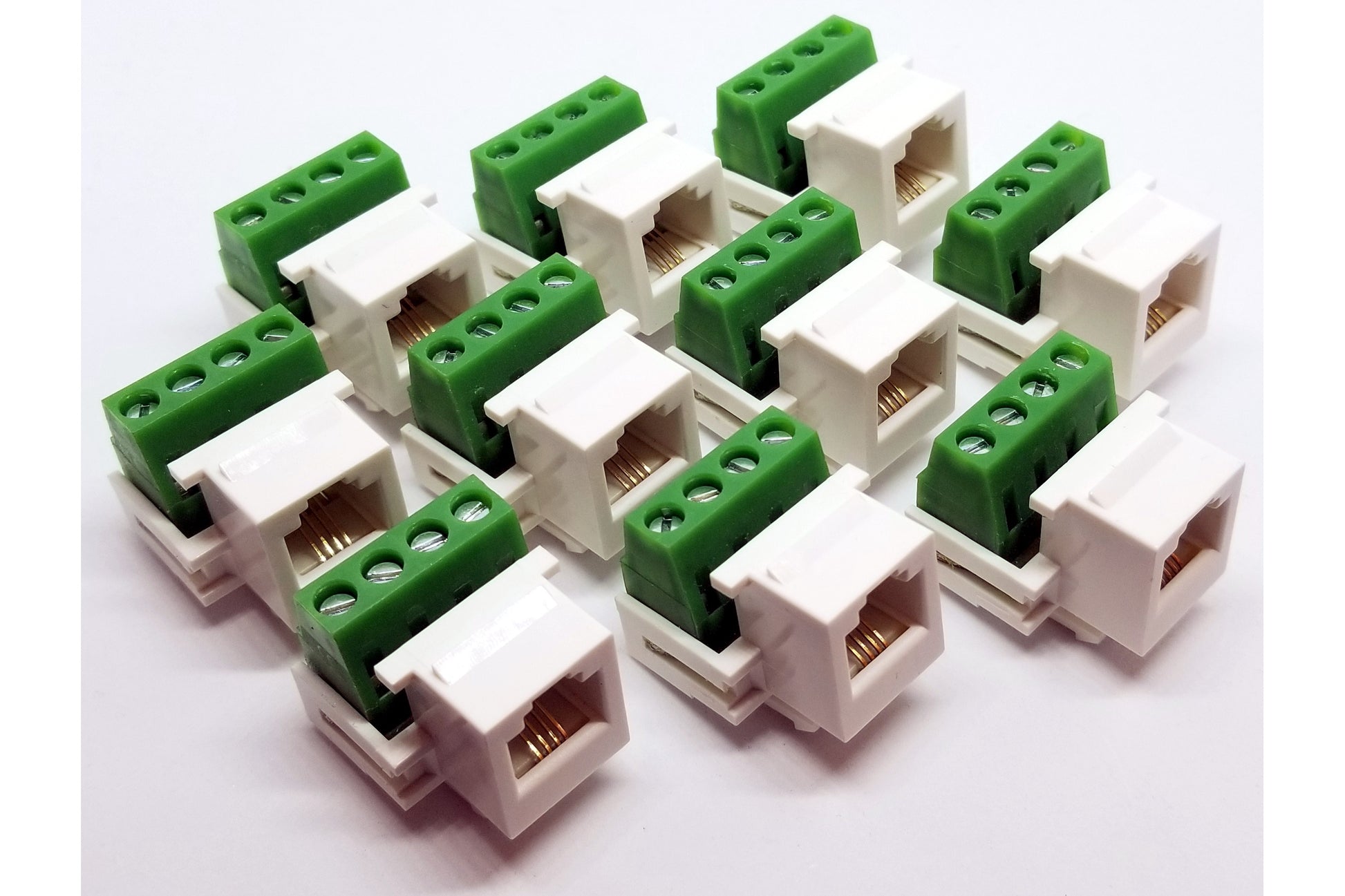

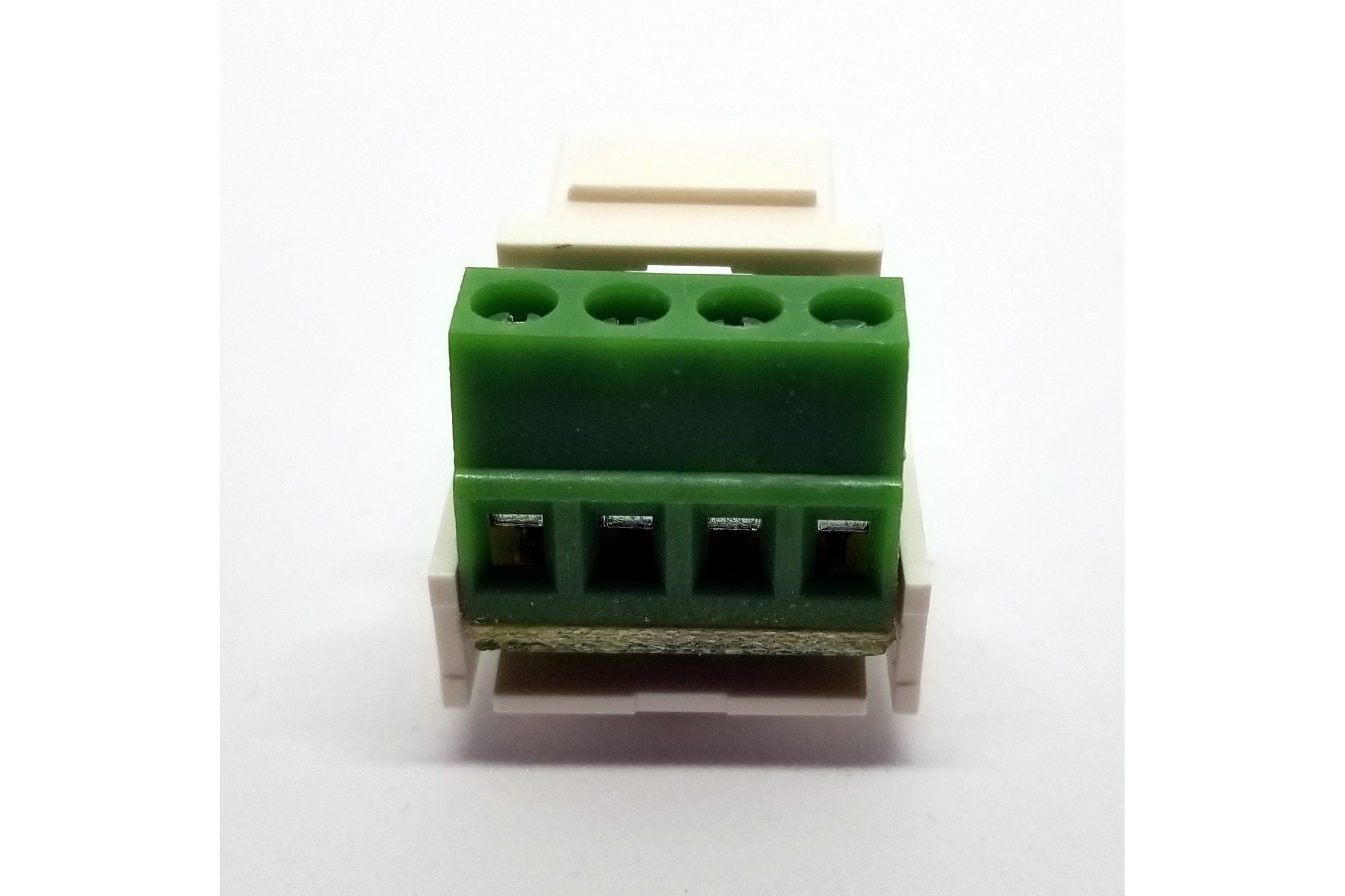

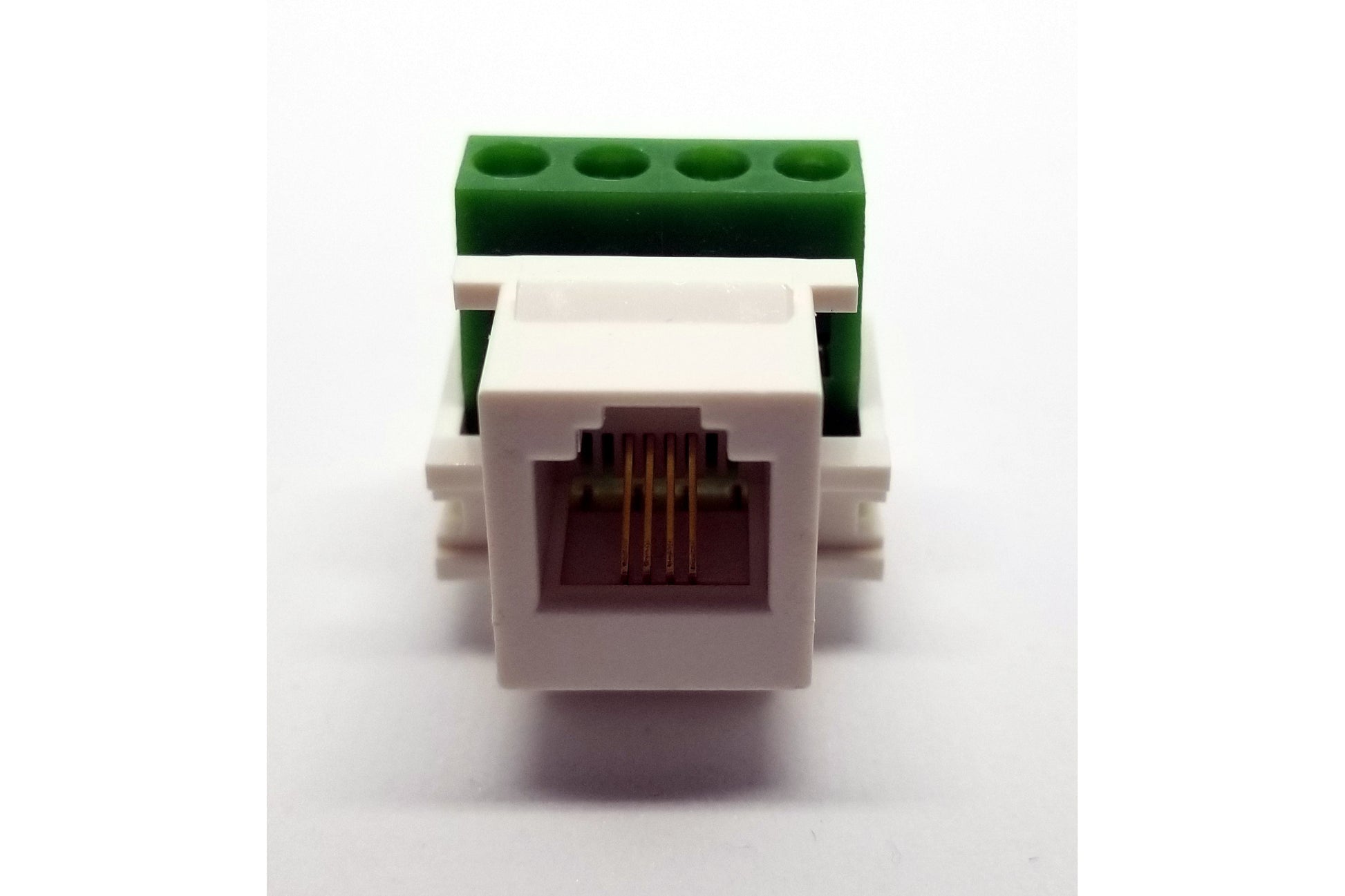

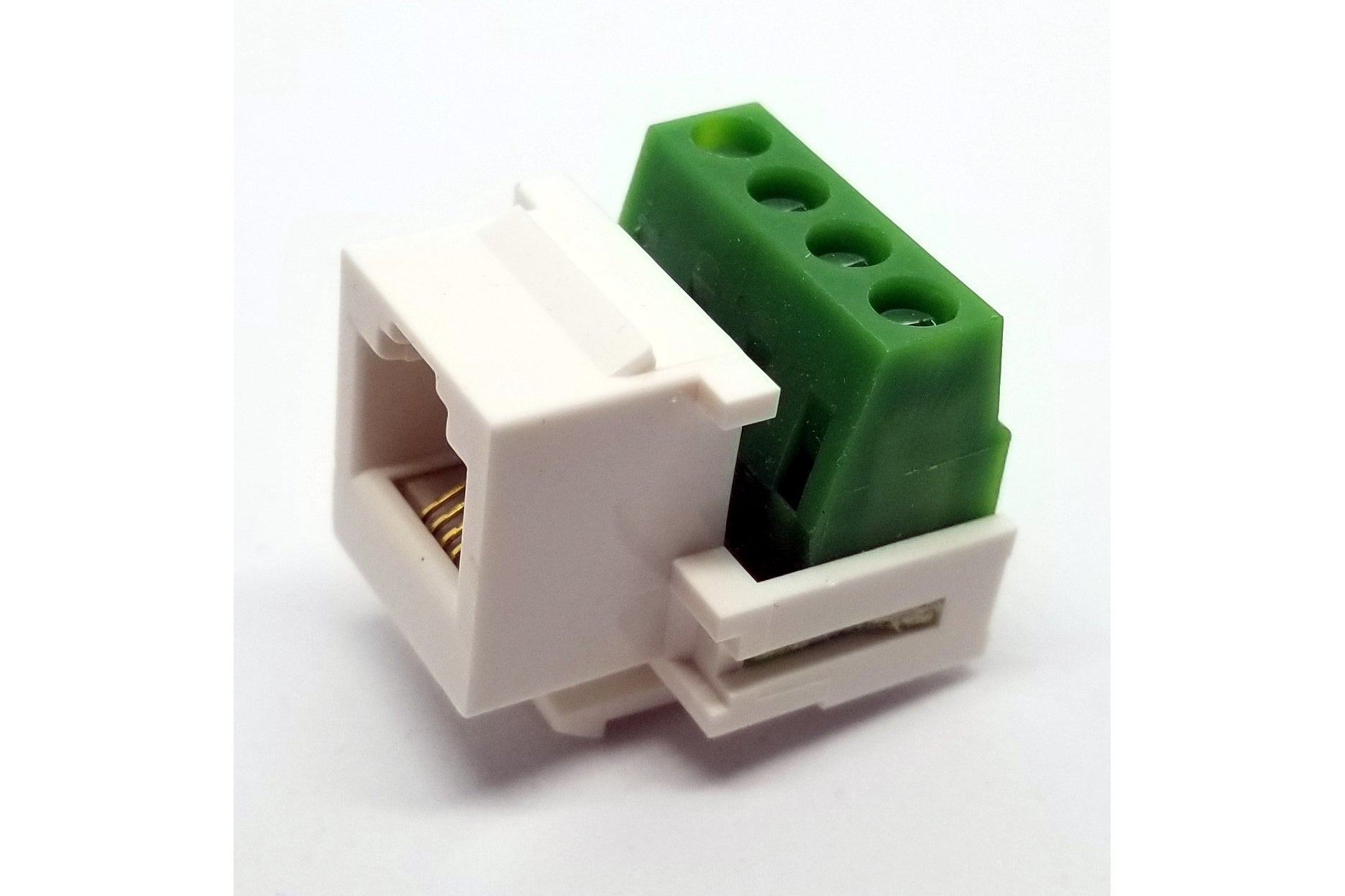

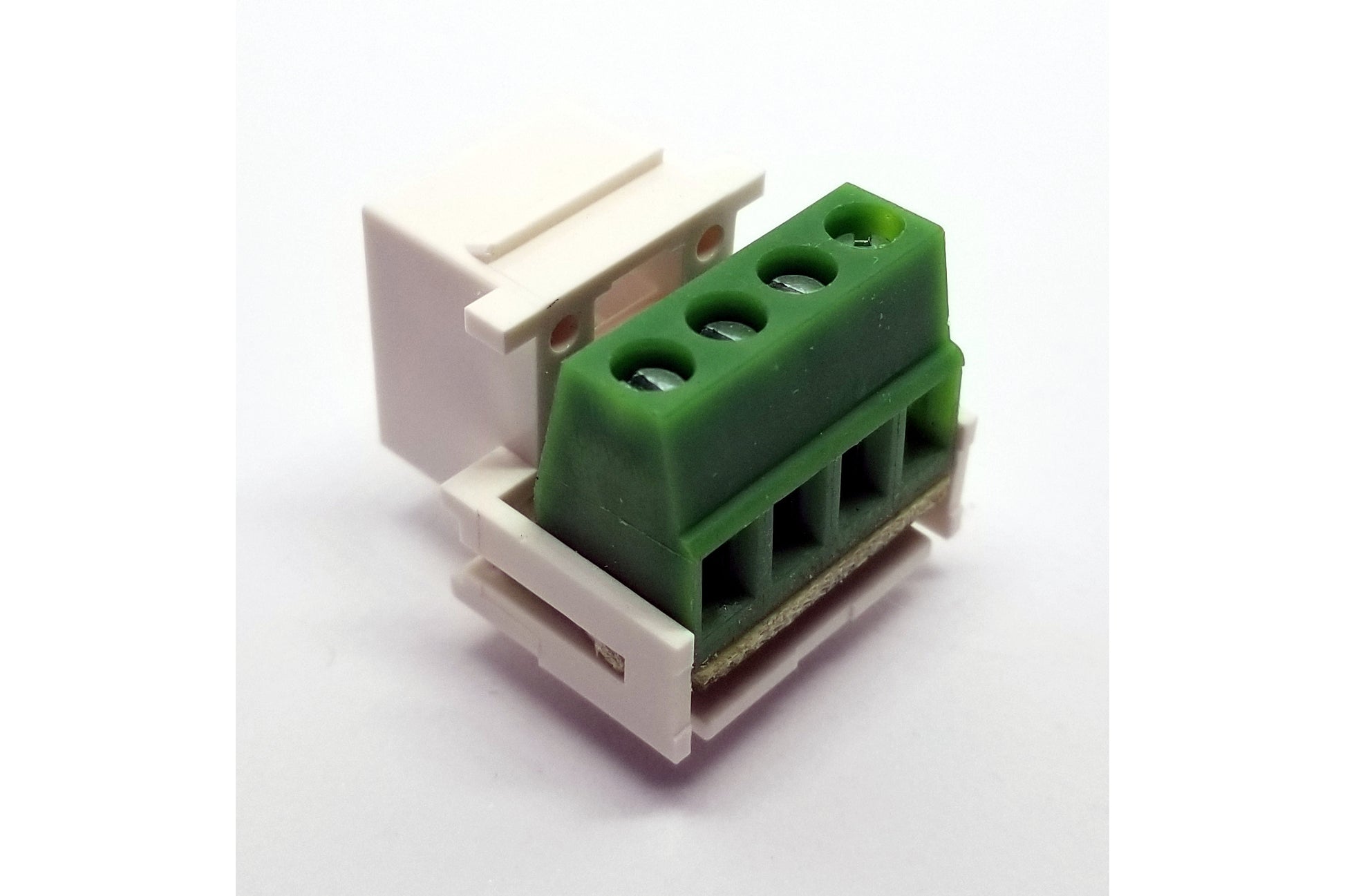

Cat 3 RJ11 Screw Terminal Keystone Jacks

Cat 3 RJ11 Screw Terminal Keystone Jacks

Regular price $27.00 USD
Regular price Sale price $27.00 USD
Sale Sold out
Model: RJ11-Screw Terminal
Place of Origin: China
Brand Name: RJ11ST
Product name: Keystone Jack
Color: White&Green
Connector type: RJ11
Specification: Cat.3
Performance: Pass the Fluke Test
Material: ABS
Type: Screw Type
Housing material: PC UL94-V0
Applicable scope: Network Wiring


Product Feature

1.  Makes installation much easier and faster.
2.  Matches well with blank patch panels, mounting boxes and faceplates.
3.  Cat. 3 wiring.

Characteristics:

Extremely compact Keystone Jack, Cat.3, Screw Terminal, for connecting application of communication ports in working area.

Mechanical

1. Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements.
2. Meet TIA/EIA TSB-40
3. Meet ISO/IEC Generic Cabling Standard 11801
4. Meet CENELEC Generic Cabling Standard EN50173
5. Angle: 90 Degree
6. Termination: 110- Krone-Dual type
7. Electrical: According to UL 1863
8. Current rating: 1.5 Amp Max.
9. Voltage rating: 150 Volts
10. Contact resistance: 20 m-ohm
11. Insulation Resistance: 500M-ohm
12. Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
