Single IO Expander 1-Wire To I2C

Single IO Expander 1-Wire To I2C

Regular price $25.00 USD
Regular price Sale price $25.00 USD
Sale Sold out

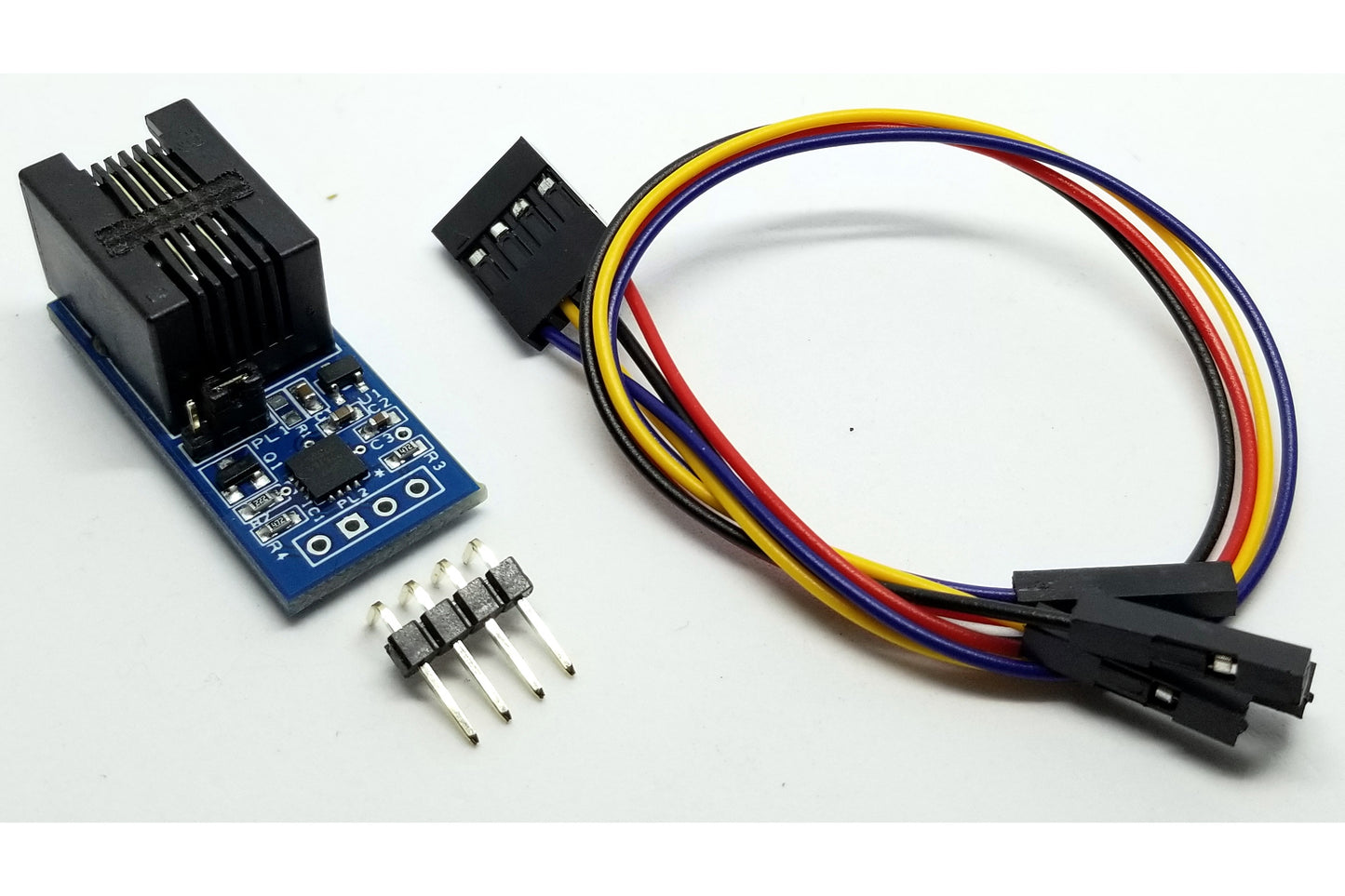

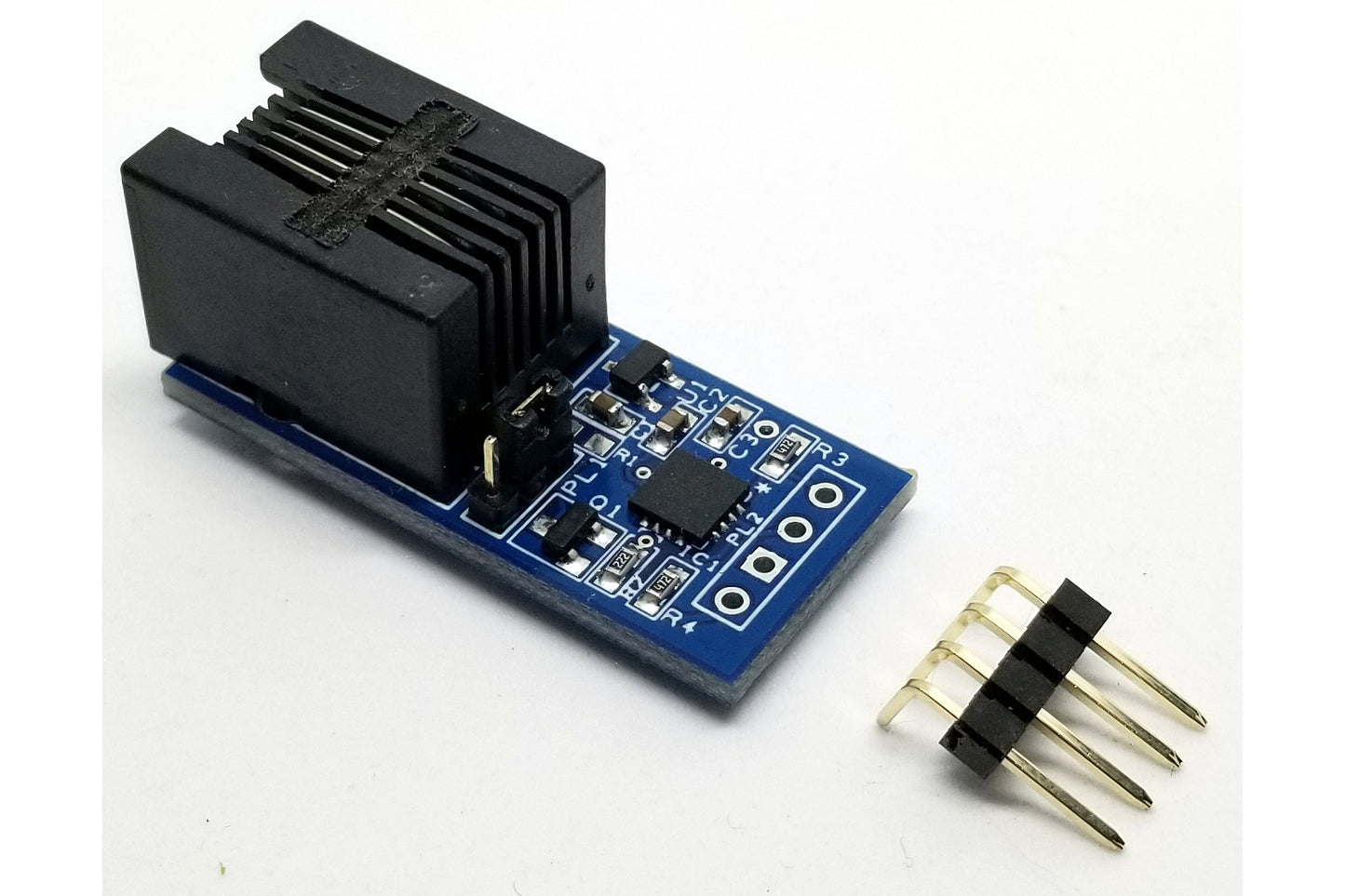

x1 IO Expander 1-Wire To I2C.
x1 Right Angle 2.54mm 4-Pin Male Header.
x1 20cm Dupont 2.54mm 4-Pin Female Header to 4x 1-Pin Female Headers.


Feature List
  • Connect multiple I2C buses to your 1-Wire® bus on the IO Expander.
  • I2C bus only at the end so it solves the limited cable length of I2C.
  • Use multiple 1-Wire® to I2C adapters to connect multiple I2C sensors with the same I2C address.
  • I2C bus is 3V3 250mA.
  • 4.7k? I2C bus pull-ups on R3 and R4.
  • PL1 jumper to select D1 or D2.
  • Software selectable I2C bus speeds of 100kHz or 400kHz.
  • 1-Wire® Standard or Overdrive(default) speed.
  • Low power 2.6mA typical.
  • 34.4mm x 15mm.
This product was designed to be used with the IO Expander.

1-Wire is a registered trademark of Maxim Integrated Products, Inc.
